FLOW55 - Precise Gravity Flow Measurement

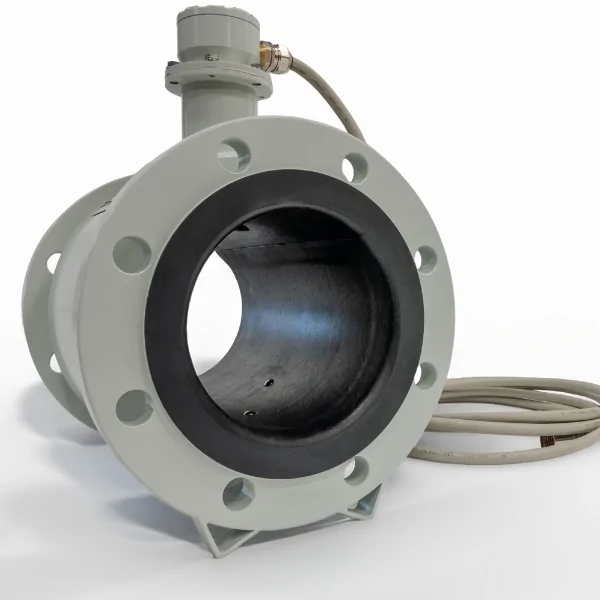

The Flow55 is an advanced electromagnetic flowmeter for gravity systems. Thanks to its unique dual measurement technology, measuring velocity (electromagnetic induction) and liquid level (ultrasonic sensor), the device ensures high accuracy (±1-2%) even when the pipeline is filled to approximately 10% of its volume. The precise arrangement of the measuring electrodes, located at the bottom of the flowmeter, plays a key role (photo). In practice, this means that flow can be measured at liquid levels as low as a few centimeters, allowing the Flow55 to be used in a wide variety of applications.

The Flow55 offers universal connectivity (4-20 mA, Modbus) enabling integration into existing control systems. The IoT module provides users with remote access to measurement data and immediate fault notification (via email or text message). The Flow55 electromagnetic flowmeter is the ideal solution for applications with irregular flow and pipelines that are not fully filled. It enables reliable measurement without the need for costly installation modifications

FLOW55 - Basic Flowmeter Parameters

• Internal Diameter Range: DN80-DN600
• Maximum Fluid Temperature (depending on the liner): 70°C
• Lining Material: Hard Rubber
• Pipe Pressure Range: No Pressure (Gravity Flow) or PN10 if the pipe is full
• Power Supply: 24 V DC, 230 V AC
• Accuracy: 1-2% of actual flow (depending on the flow profile and level detection)
• Protection Rating: IP68 for the sensor, IP65-68 for the transmitter
• Output Signal: Pulse, 4-20 mA, RS485 (Modbus)
• Process Connections: Flanged
